37 the diagram shows total internal reflection. which of the following statements is not true?

(c) The diagram below shows a pendulum having a bob of mass 80 g. A and C are extreme positions and B is the mean position. The bob has velocity 5 m/s at position B. [g = 10N/kg] (i) Which one of the following statements is correct? At point A the bob has only kinetic energy. At point B the bob will have only potential energy. 6 (a) Fig. 6.1 shows crests of a sound wave after reflection from a solid surface. solid surface direction of travel of reflected wave Fig. 6.1 On Fig. 6.1, draw three crests of the incident wave. [3] (b) Tick four statements in the list below that are false for a sound wave that is audible to a healthy human ear. The wave is longitudinal.

The diagram shows a ray of light travelling in a substance P. The ray reaches a boundary with a substance Q. Total internal reflection occurs at the boundary. Which row contains the correct statements about angle X and about the optical density of substance Q?

The diagram shows total internal reflection. which of the following statements is not true?

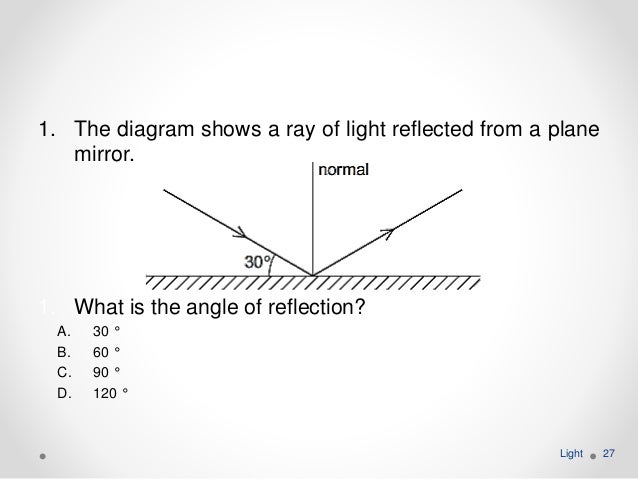

Slect these from the following: The incident ray, the normal and the reflected ray all lie in the same plane. The angle of incidence is equal to the angle of reflection. 16 Oct 2019 — Which of the following statements is NOT true? A. Angle AON is the angle of incidence. B. Angle AON = angle BON. C ...1 answer · Top answer: C. Angle AON must be the critical angle C: Wave fronts. 2. B: Limit of the storm. 3. A: Fetch. This diagram illustrates the phenomenon of wave interference (results not shown). Correctly match the letter with each type of interference that would be produced by the overlapping of the sets of waves shown below. 1. C: Constructive interference.

The diagram shows total internal reflection. which of the following statements is not true?. (e) The diagram shows the path of light through a right-angled prism of critical angle 42°. Observe the diagram and answer the questions that follow. (i) The phenomenon at the surface AC is 1. Refraction 2. Partial reflection 3. Total internal reflection 4. Scattering. (ii) The angle of incidence at the surface AC is 1. 30° 2. 45° 3. 60° 4 ... Which of the following statements is NOT true? mec medium II Angle AON is the angle of incidence Angle toN angle BON Angle must be the critical angle The speed ...4 answers · Top answer: So let's start from the first part of this problem. And for the total internal reflection, the ... 3. The diagram shows total internal reflection. Which of the following statements is NOT true? A) angle AON is the angle of incidence. B ...2 pages The following diagram shows a 6 0 o, 3 0 o, 9 0 o glass prism of critical angle 4 2 o. Copy the diagram and complete the path of incident ray AB emerging out of the prism marking the angle of incidence on each surface. Medium. Open in App. Solution. Verified by Toppr.

(b) The diagram shows a typical resistance strain gauge. The wire in the gauge is arranged in a zigzag pattern. The length of the zigzag pattern is 2.50 cm and the cross-sectional area of the iron wire is 9.0×10-8 m2. The resistivity of iron is 9.9×10-8 Ωm. Show that the total resistance of the strain gauge is about 0.2Ω. (3) Answer: (c) Refraction, dispersion and internal reflection. A rainbow is regarded as one of the most spectacular light shows observed on the earth. A rainbow is a multicoloured arc made due to the striking of light on water droplets. Rainbow is produced after the rain, by reflection, refraction and light dispersion process in droplets of water. The diagram shows a ray of light travelling in a substance P. The ray reaches a boundary with a substance Q. Total internal reflection occurs at the boundary. substanceQ. boundary. substance P. normal. angle X. rayof light. Which row contains correct statements about angle X and about the optical density of substance Q? angle X an optic fibre. A bundle of glass threads, each of which is capable of transmitting messages using light waves is called. refract towards the normal. A ray of light traveling in medium 1 strikes and travels into another transparent medium, medium 2. If the speed of light is greater in medium 1, the ray will. 4 (1/ (4/3)) = 3 metres.

A Total internal reflection occurs when a light ray is completely absorbed in an object.; B Total internal reflection occurs when a light ray is completely reflected at the boundary between two media of different densities and the light ray is traveling in the higher-density medium.; C Total internal reflection occurs when the reflected light ray moves along the same path as the incident light ... Which of the following statements most correctly describes the result of waves passing through a single gap that is approximately the same width as the wavelength of the waves that pass through it? ... The diagram shows the wave fronts of two waves that have been diffracted through equally narrow gaps. ... Total Internal Reflection Click here👆to get an answer to your question ️ Under what conditions does the phenomenon of total internal reflection take place ? Draw a ray diagram showing how a ray of light deviates by 90° after passing through a right-angled isosceles prism. Total internal reflection only occurs when light travels from air to glass. The larger the refractive index of glass, the larger is the critical angle. When total internal reflection occurs, the angle of incidence is equal to the angle of reflection. When total internal reflection occurs, the angle of incidence is less than the critical angle.

Total internal reflection - Wikipedia

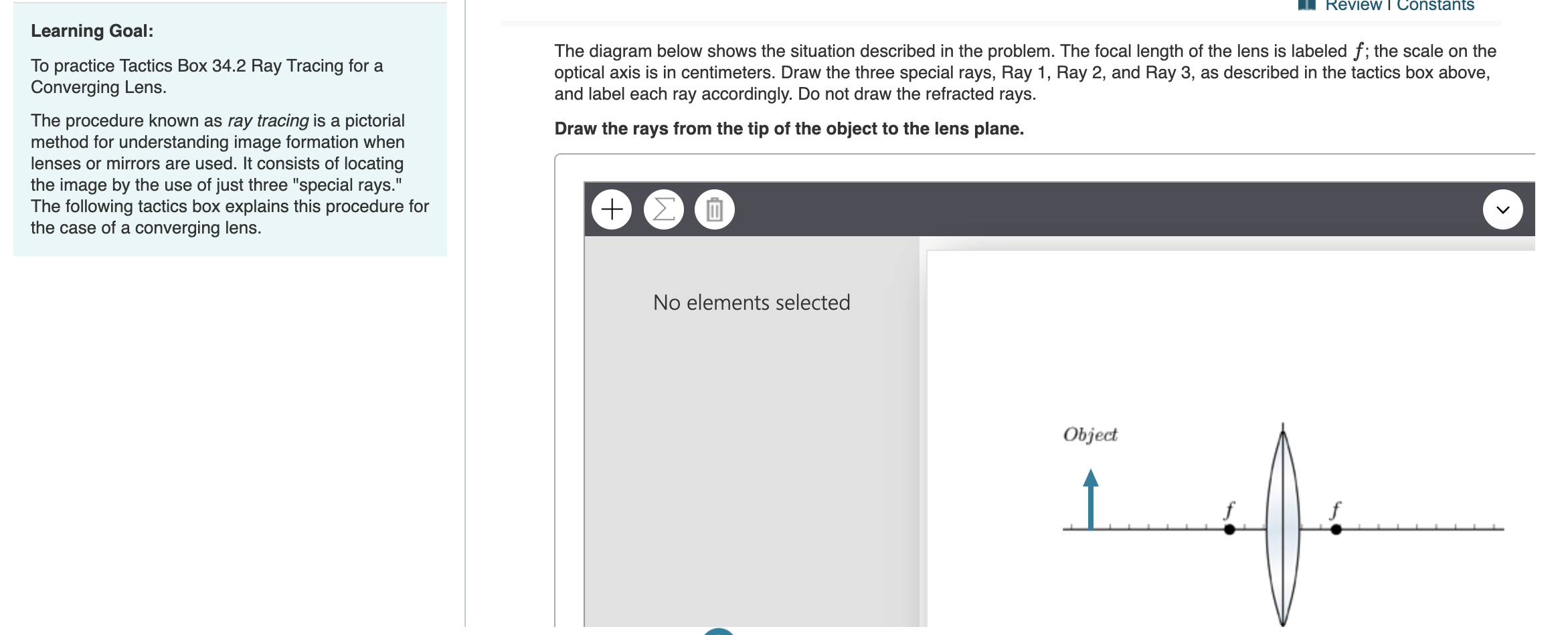

Reflection and Refraction of Light. In this activity, the properties of reflection and refraction of light will be explored. The simulation shows the light rays as they are incident on a medium interface (incident ray), the reflected from the medium interface (reflected ray), and refracted into the second medium after crossing the interface (refracted ray).

The Diagram Shows Total Internal Reflection Which Of The ...

7 A student watches a demonstration of the total internal reflection of light in a semicircular glass block. i = angle of incidence i (a) He takes notes, but some of his notes are wrong. Place a tick (3) or a cross (2) in the table to show which statements are right or wrong. The first statement is right and has been done for you. (2)

Total Internal Reflection | Physics

(Total 1 mark) 2 A discharge lamp emits light of four colours: red, green, blue and violet. The diagram shows light from the lamp incident normally on a diffraction grating with slit separations of 1.8 × 10í m. The light is viewed through a telescope which can be rotated as shown. €

Solved For the scenarios in which total internal reflection ...

Physics revision site - recommended to teachers as a resource by AQA, OCR and Edexcel examination boards - also recommended by BBC Bytesize - winner of the IOP Web Awards - 2010 - Cyberphysics - a physics revision aide for students at KS3 (SATs), KS4 (GCSE) and KS5 (A and AS level). Help with GCSE Physics, AQA syllabus A AS Level and A2 Level physics.

2 Total internal reflection is most likely to occur when a ...

1 c the diagram below shows a pendulum having a bob. [1] (c) The diagram below shows a pendulum having a bob of mass 80 g. A and C are extreme positions and B is the mean position. The bob has velocity 5 m/s at position B. Assuming there is no loss of energy, select the correct statements from the options given below: [g = 10 N/kg] [2]

The Diagram Shows Total Internal Reflection Which Of The ...

Which of the following statements is correct if the source of yellow light is replaced with that of other lights without changing the angle of incidence? [NCERT Exemplar] (a) The beam of red light would undergo total internal reflection. (b) The beam of red light would bend towards normal while it gets refracted through the second medium.

Changing the way you learn | Quiz

4 Which of the following shows total internal reflection? 5 The diagram shows light ray XO experiencing total internal reflection when travelling from the glass to air. Which statements about total internal reflection are correct? P - θ is more than the critical angle of glass Q - The speed of light in the glass is higher than in air

Total Internal Reflection | Physics

(e) The diagram shows the path of light through a right-angled prism of critical angle 42°. Observe the diagram and answer the questions that follow. (i) The phenomenon at the surface AC is 1. Refraction 2. Partial reflection. 3. Total internal reflection 4. Scattering. Solution : Option (3). Total internal reflection is correct. Explanation

ICSE SEMESTER 1 EXAMINATION SPECIMEN QUESTION PAPER PHYSICS ...

Balbharati solutions for Physics 11th Standard Maharashtra State Board chapter 9 (Optics) include all questions with solution and detail explanation. This will clear students doubts about any question and improve application skills while preparing for board exams. The detailed, step-by-step solutions will help you understand the concepts better and clear your confusions, if any.

NSEJS PREVIOUS PAPERS 2015-2016 -

3. This reflection does not obey the laws of reflection. 4. Can take place if the angle of incidence in a denser medium is more than the critical angle. [2] (e) The diagram shows the path of light through a right-angled prism of critical angle 42°. Observe the diagram and answer the questions that follow. (i) The phenomenon at the surface AC is 1.

Successive Rotation - an overview | ScienceDirect Topics

Which of these statements best describes the path? ... Which of the following diagrams shows the path of a ray of light that has been totally internally reflected through a glass prism? ... Total internal reflection is used in long glass strands to carry light signals.

Solved Part II: Total Internal Reflection When light moves ...

10 The diagram shows how the displacement varies with distance along a stationary wave at two instants of time. displacement X distance Y Z Which of the following statements is not correct? A Points X and Z are in antiphase with each other. ... State the conditions required for total internal reflection to occur. (2) ...

Venn Diagram Definition

2021/2/27 Show Level 2 Review questions A. reflection B. total internal reflection C. refraction D. diffraction 7/87 Solution 7 Ans 2021/2/27 Show Level 2 Review questions The diagram shows the image of a clock formed in a plane mirror.

Discovery of complex oxides via automated experiments and ...

(c) The diagram below shows a pendulum having a bob of mass 80 g. A and C [2] are extreme positions and B is the mean position. The bob has velocity 5 m/s at position B. [g = 10N/kg] Which one of the following statements is correct? At point A the bob has only kinetic energy. At point B the bob will have only potential energy

Document

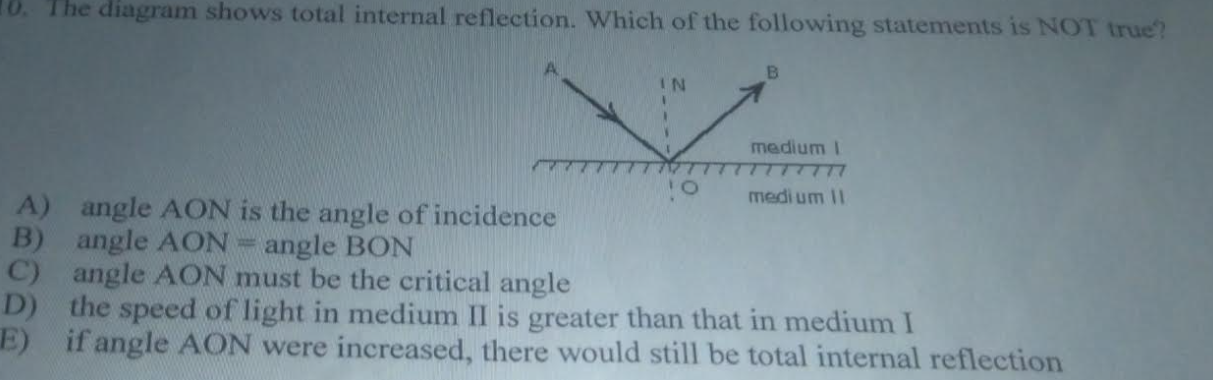

The diagram shows total internal reflection. Which of the following statements is NC IN medium I A) angle AON is the angle of incidence B) angle AON = angle BON C) angle AON must be the critical angle D) the speed of light in medium II is greater than that in medium I E) if angle AON were increased, there would still be total internal reflection
