42 draw the moment diagram for the beam.

Kathy W. Blatt · Tuesday, January 4, 2022

Bending moment cantilever beam shear force and bending moment diagram chapter 3 shearing force and bending draw the shear force and bending moment shear ... Bending Moment Diagrams Effectively Mechanicalbase. Solved 1 Draw The Shear Force And Bending Moment Diagrams Chegg. Bending moment diagrams effectively mechanicalbase solved 2 draw shear force and bending moment diagrams of the beam find maximum values 40 5 knm 20 kn 10 6m draw the shear and moment diagrams for pound beam holooly the ultimate ...

13. Draw the diagram of the moment in the beam. The moment in the end of the beam starts out at 0 ft-lbs. The moment along the length of the beam is found by calculating the area of the shear diagram. The shear diagram is the shape of a triangle; therefore the area is calculated as shown: The moment goes back to zero on the right side of the ...

Draw the moment diagram for the beam.

The equation for this part of our bending moment diagram is: -M (x) = 10 (-x) M (x) = 10x Cut 2 This cut is made just before the second force along the beam. Since there are no other loads applied between the first and second cut, the bending moment equation will remain the same. What are the benefits of drawing shear force and bending moment diagram? The benefits of drawing a variation of shear force and bending moment in a beam as a function of 'x' measured from one end of the beam is that it becomes easier to determine the maximum absolute value of shear force and bending moment. BEAM DIAGRAMS AND FORMULAS Table 3-23 (continued) Shears, Moments and Deflections 13. BEAM FIXED AT ONE END, SUPPORTED AT OTHER-CONCENTRATED LOAD AT CENTER

Draw the moment diagram for the beam.. Steps to draw Shear force and Bending moment diagrams In SFD and BMD diagrams Shear force or Bending moment represents the ordinates, and the Length of the beam represents the abscissa. Consider the left or the right portion of the section. Add the forces (including reactions) normal to the beam on the one of the portion. Draw the full shear and moment diagram for the beam shown below. Give the elastic curve between A and B. Provide the slope and the deflection at X = 2.5 m. (Show all work- superposition or deriving the equation will work). Assume E = 70 GPa and the beam is a W760x147 beam loaded about its strong axis. 30 kN/m 5.0 m . A B X Shear and Moment Diagrams by Superposition Example: Draw the shear and moment diagrams for the following beam using superposition. 10 ft. A 5 k/ft. 10 k These instructions will help you to calculate and draw shear and bending moment diagram, as well as draw the resulting deflection. Knowing how to calculate and draw these diagrams are important for any engineer that deals with any type of structure because it is critical to know where large amounts of loads and bending are taking place on a beam so that you can make sure your structure can ...

4.0 Building Shear and Moment Diagrams. In the last section we worked out how to evaluate the internal shear force and bending moment at a discrete location using imaginary cuts. But to draw a shear force and bending moment diagram, we need to know how these values change across the structure. Question: Draw the bending-moment diagram for the beam and the Draw the shear diagram for the beam. This problem has been solved! See the answer ... Moment Diagrams Constructed By The Method Of Superposition Mo Civil Ering. Draw The Shear Force And Bending Moment Diagrams For Beam Shown Below W 2500 N M F 1 10 000 Study. Bending Shear And Moment Diagram Graphical Method To. Solved 3 Draw The Shear Force And Bending Moment Diagrams Chegg. Solved Draw The Shear Force Bending Moment Diagrams ... Draw the shear and moment diagrams for the beam a in terms of the parameters shown. Part a draw the shear diagram for the beam. Consider the overhang beam shown in figure below draw shear and bending moment diagrams study. Shear forces and bending moments.

Draw shear force and bending moment diagrams [SFD and BMD] for a single side overhanging beam subjected to loading as shown in the Fig. given below. Locate points of contra flexure if any. 10kN/m 1m 1m 3m [Ans : Position of point of contra flexure from RHS = 0.375m] Exercise Problems 25kN/m 10kNm B 2m VM-75. Draw the free body diagram of the beam CBD. Apply the moment equilibrium equation about point C. Here, the reaction force at support D is . Substitute for . Apply the force equilibrium equation along the vertical direction. Here, the vertical reaction force at support D is . Substitute for and for . Bend beam over Support 2 to cause negative bending (since MD = -16.0k-ft) Load spans to cause the deflected shape above. 3.2 Calculate the moment at Support 2 due to live load (ML) We could calculate the reactions, draw the V and then the M diagram; OR use one of the formulas below: Simply-supported Beam with Uniform Load: 2 w w L / 8 M L wL ... Bending diagrams are represented with a straight horizontal line right below the beam. This line represents zero. Beneath the line, the bending moment is ...

Solved: 7-76 Draw The Shear And Moment Diagrams For The ...

Shear Force and Bending Moment Diagram of Cantilever beam when point load is applied. From the figure we have the value of load at point A and point B. So let's draws the shear force diagram with the help of these loading. Bending moment at point A is zero. Bending moment at point B= -2*2 = 4 KN-M. Bending moment at point C= -2*4-4*2 = 12 KN-M.

For the figure below, draw the shear and moment diagrams ...

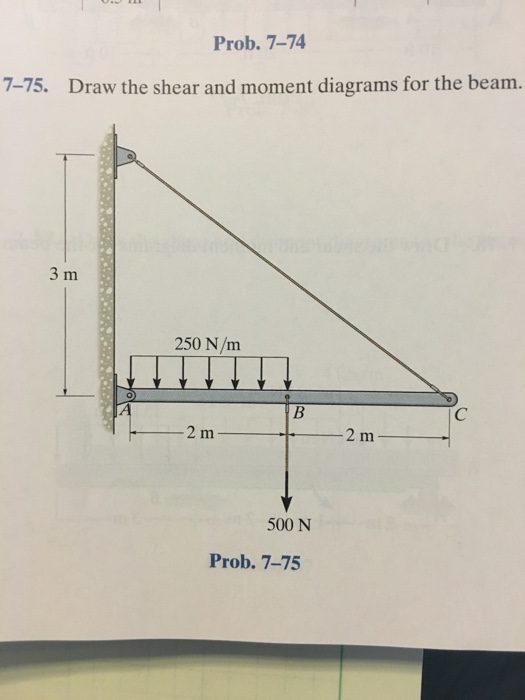

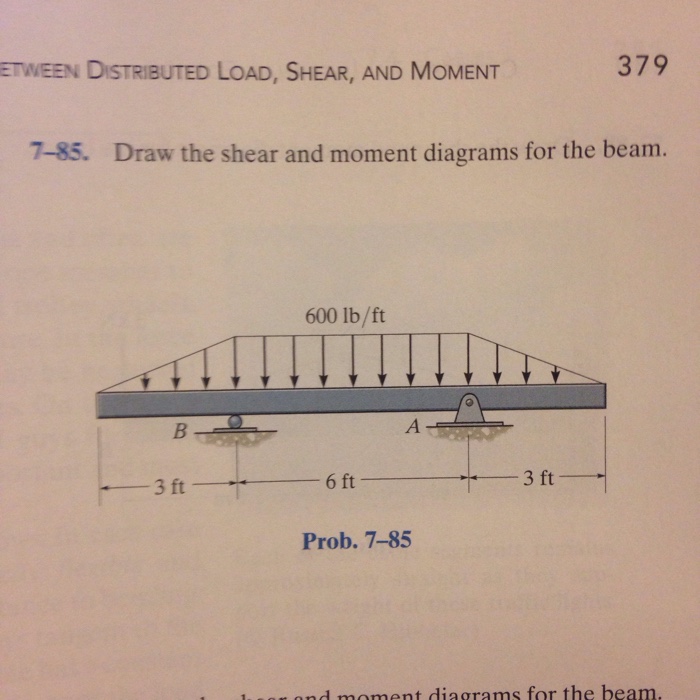

Draw the shear and moment diagrams for the beam, and determine the shear and moment throughout the beam as functions of x. Results. See All Results. Question: Mechanics of Materials - Instructor Solutions Manual [EXP-4667]

Draw the shear and moment diagrams for the beam, and ...

It is visually desirable to draw the V-diagram below the FBD of the entire beam, and then draw the M-diagrambelow theV-diagram. The bending moment and shear force diagrams of the beam are composites of the Vand Mdiagrams of the segments. These diagrams are usually discontinuous, or have discontinuous slopes.

Solved: Draw The Shear And Moment Diagrams For The Beam ...

drawing the S/B diagrams. [1,2]The method of sections can be used to determine fully the shear force and bending moment at any cross-section of beams and to draw the S/B diagrams. When there are several external forces on a beam, the beam must be divided into several segments. The method of sections will be used repeatedly in each segment.

Image from page 117 of "Essentials in the theory of framed structures" (1922)

· Solved Draw The Shear Diagram For The Beam Follow The Si. 4.3 shear moment equations and shear moment diagrams the determination of the internal force system acting at a given section of a beam: draw a free body diagram that expose these forces and then compute the forces using equilibrium equations. the goal of the beam analysis －determine the shear force v and.

Image from page 463 of "Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc" (1888)

6–9. Draw the shear and moment diagrams for the beam. Hint: The 20-kip load must be replaced by equivalent loadings at point C on the axis of the beam.143 pages

Solved: Problem 7.55 Part A Draw The Shear Diagram For The ...

Answer to Draw the shear and Moment diagrams for the overhang beam. How the bending moment diagram of an overhanging beam will be if only we can draw the shear force diagram since it dictates the shape of bending moment . 6-5. Draw the shear and moment diagrams for the beam. 2 m. 3 m. 10 kN. 8 kN. 15 kNm. 6-6.

Image from page 51 of "Strength of materials; a comprehensive presentation of scientific methods of locating and determining stresses and calculating the required strength and dimensions of building materials" (1914)

Free online beam calculator for generating the reactions, calculating the deflection of a steel or wood beam, drawing the shear and moment diagrams for the beam. This is the free version of our full SkyCiv Beam Software. This can be accessed under any of our Paid Accounts, which also includes a full structural analysis software.

Image from page 64 of "Cyclopedia of architecture, carpentry, and building : a general reference work" (1912)

.7—41. Draw the shear and moment diagrams for the simply supported beam. Since the loading discontinues at the 9- kN concentrated force, the shear and moment equations must be written for the regions O x < 4 m and 4 m < 6 m Of the beam. The free - body diagrams of the beam's segment sectioned through

Image from page 278 of "The strength of materials; a text-book for engineers and architects" (1916)

1) Calculate the shear force and bending moment for the beam subjected to concentrated load as shown in the figure. Also, draw the shear force diagram (SFD) and the bending moment diagram (BMD). Solution; Free body diagram of the given figure, Taking moment about point B, R Ay x 4 - 20 x 2 = 0. 4 R Ay = 40.

"Mother I feel you under my feet, Mother I hear your heartbeat.

A visual of these forces can be seen in the diagram to the right. Creating the Moment Diagram The moment diagram will plot out the internal bending moment within a horizontal beam that is subjected to multiple forces and moments perpendicular to the length of the beam.

Solved: Draw The Shear And Moment Diagram For Beam CD. Dra ...

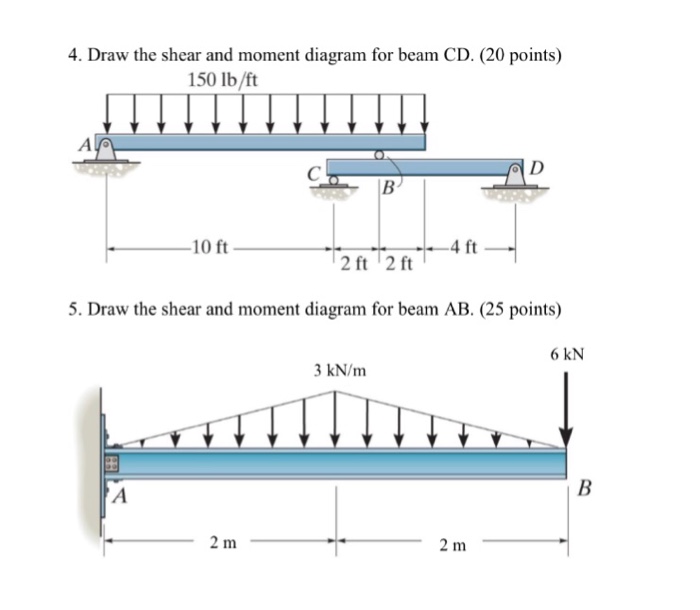

Draw the shear and moment diagrams of the beam. Assume the support at B is a pin and A is a roller.

Bibleverse in a biblejournalling bible

Draw shear force and bending moment diagram of simply supported beam carrying uniform distributed load and point loads. As shown in figure. Solution First find reactions R1 and R2 of simply supported beam. Reactions will be equal. Since, beam is symmetrical. R1 = R2 = W/2 = (600 +600 + 200 x4)/2 = 1000kg Hence, R1 = R2 = 1000 kg. Shear Force

Solved: 6. [7-55] Draw The Shear And Moment Diagrams For T ...

Shear and Moment Diagrams. Shear and Moment Diagrams. Consider a simple beam shown of length L that carries a uniform load of w (N/m) throughout its length and is held in equilibrium by reactions R 1 and R 2. Assume that the beam is cut at point C a distance of x from he left support and the portion of the beam to the right of C be removed.

Solved: Draw The Shear And Moment Diagrams For The Beam An ...

First draw the free-body-diagram of the beam with sufficient room under it for the shear and moment diagrams (if needed, solve for support reactions first). 2. Draw the shear diagram under the free-body-diagram. The distributed load is the slope of the shear diagram and each point load represents a jump in the shear diagram. Label all the loads ...

Image from page 64 of "Text-book of mechanics" (1906)

BEAM DIAGRAMS AND FORMULAS Table 3-23 (continued) Shears, Moments and Deflections 13. BEAM FIXED AT ONE END, SUPPORTED AT OTHER-CONCENTRATED LOAD AT CENTER

Solved: Draw The Shear And Moment Diagrams For The Beam ...

What are the benefits of drawing shear force and bending moment diagram? The benefits of drawing a variation of shear force and bending moment in a beam as a function of 'x' measured from one end of the beam is that it becomes easier to determine the maximum absolute value of shear force and bending moment.

Solved: Draw The Shear And Moment Diagrams For The Beam. T ...

The equation for this part of our bending moment diagram is: -M (x) = 10 (-x) M (x) = 10x Cut 2 This cut is made just before the second force along the beam. Since there are no other loads applied between the first and second cut, the bending moment equation will remain the same.

Solved: Part B Draw The Moment Diagram For The Beam. Follo ...

Image from page 450 of "The strength of materials; a text-book for engineers and architects" (1916)

Solved: Draw The Shear And Moment Diagrams For The Beam ...

Draw The Shear And Moment Diagrams For Beam Shown Below ...

Solved: Draw The Shear And Moment Diagrams For The Beam Lo ...

Image from page 523 of "Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc" (1888)
